640581-1
Manufacturer:
TE Connectivity
Mfr.Part #:
640581-1
Datasheet:
Description:

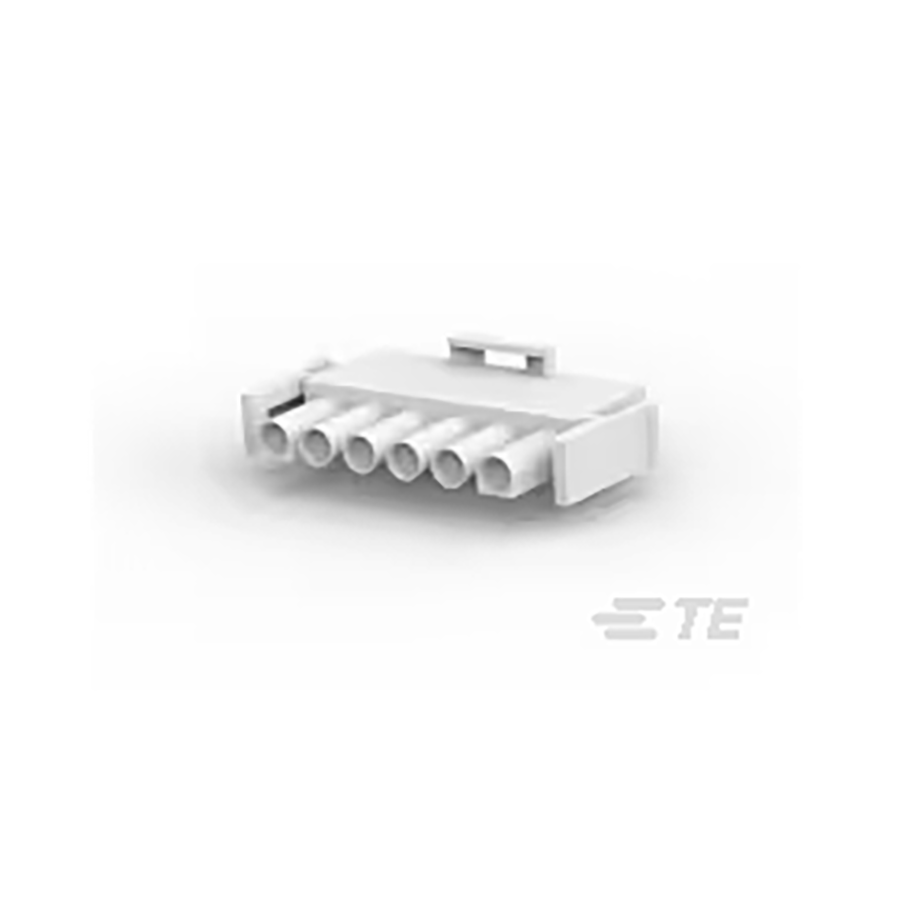

Headers and Wire Housings Cable, Free Hanging Male or Female, Plug Number of Positions:6 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Length | 39.37 mm |
| Width | 7.62 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 27.43 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 6.35 mm |
| Current Rating | 19 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 6 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male or Female, Plug |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 10 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Natural |
| Panel Thickness | 2.286 mm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 261
Distributors
pcbx
pcbxUnit Price$0.58771
Ext.Price$0.58771
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58771 | $0.58771 |
| 10 | $0.47405 | $4.74050 |
| 25 | $0.43542 | $10.88550 |
| 50 | $0.39993 | $19.99650 |
| 100 | $0.36734 | $36.73400 |
| 300 | $0.33783 | $101.34900 |
| 500 | $0.31069 | $155.34500 |
| 1000 | $0.29381 | $293.81000 |
